Repair Procedures: Removal
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the lower crash pad.
(Refer to Body - "CRASH PAD ")
- Disconnect the stop lamp switch connector (A).
- Pull the locking plate (A) as indicated by the arrow.

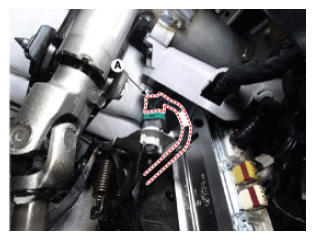

- Turn stop lamp switch (A) 45° counterclockwise and remove it.
- Inspect a removed stop lamp switch along the below procedures.
- Confirm a normal connection with terminal part
A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
- Perform the inspection of parts resistance
Resistance (Ω) 3-4 1-2 Non rod protruded (switch turned OFF) Infinite 0 Rod protruded (switch turned On) 0 Infinite - Confirm a normal connection with terminal part
