Repair Procedures: Installation
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedures.
- When installing, press and rotate the piston into the caliper body until it is fully retracted.NOTE:
- For the brake pad to locate on the normal operation position, depress the brake pedal halfway several times until the brake pedal gains resistance.
- After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake.
- After installation, bleed the brake system.
(Refer to Brake system - "BRAKE SYSTEM BLEEDING ")
(Refer to Brake System - "ESP SYSTEM BLEEDING ")

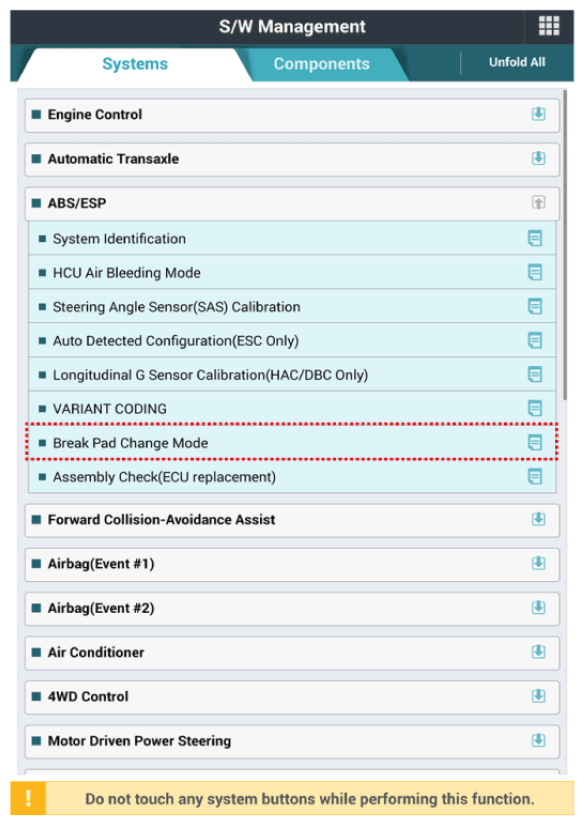

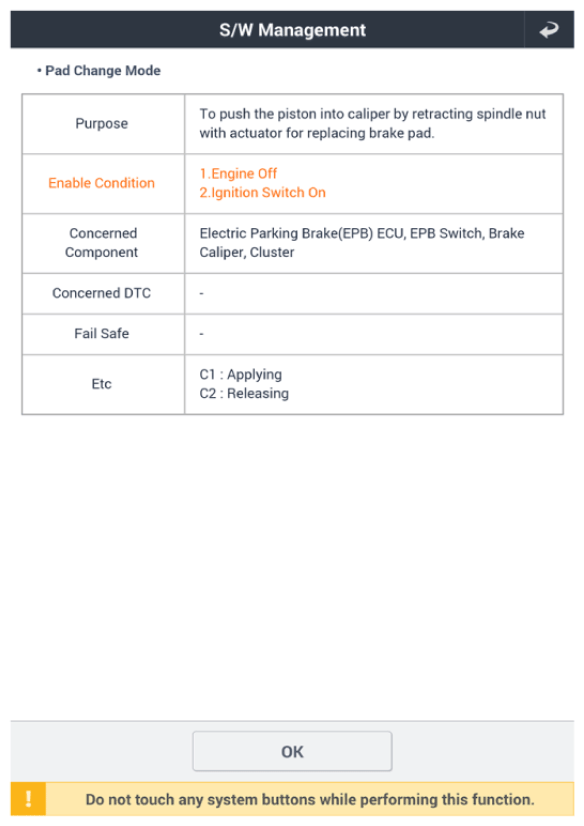

- After installing the rear caliper (EPB applied), perform "Brake Pad Replacement Mode" using the GDS.

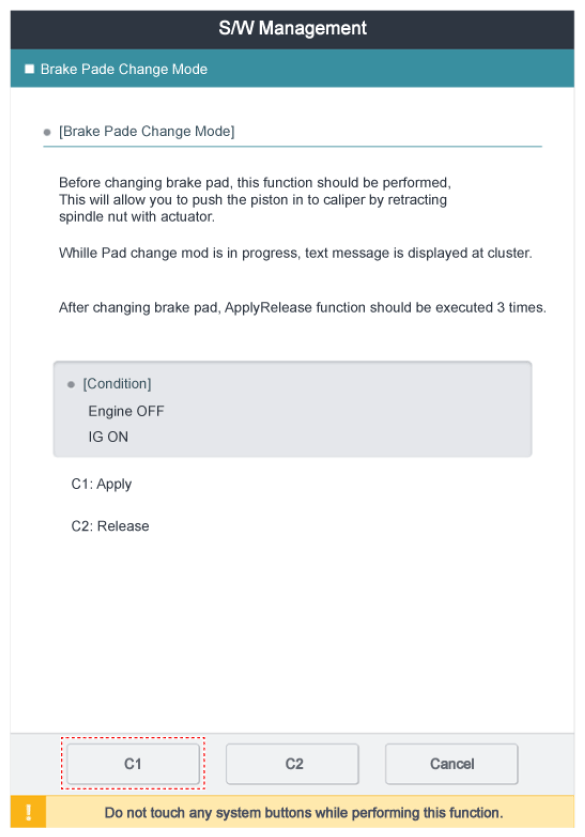

- Select C1 (Apply) on the screen below.

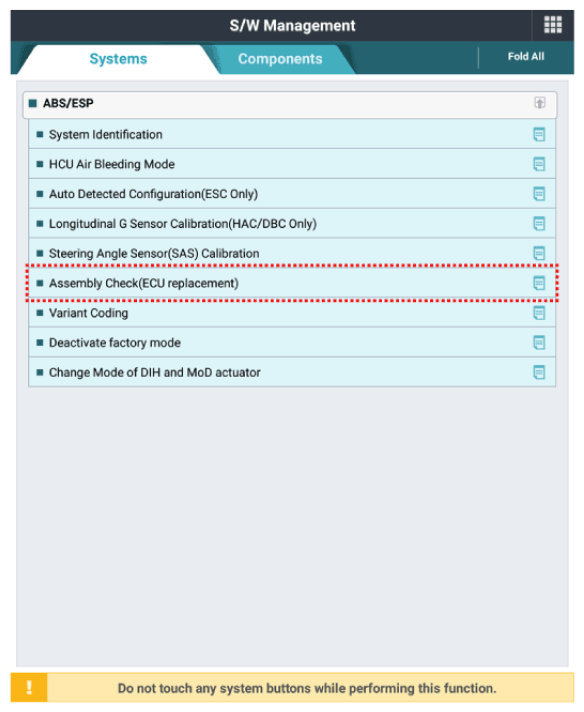

- After replacing the rear caliper, make sure that the caliper is installed correctly by performing "Check assembling (ECU replaced)" from the option.
