Brake Oil: Specifications: Specification
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of HYUNDAI MOTOR AMERICA
|

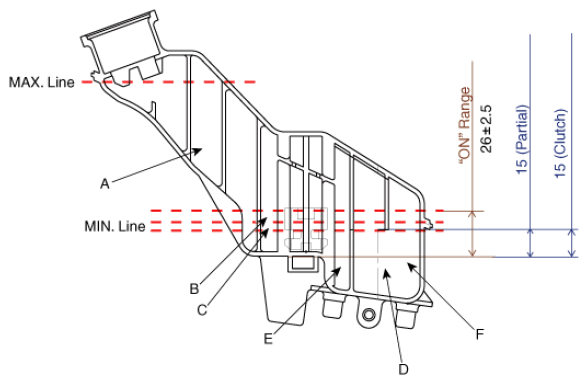

| Reservoir Quantity (cc) |
| Total |
A + B + C + D + E + F |
460 ± 20 |
| MAX LEVEL |
A + B + C + D + E |
440 ± 20 |
| MIN LEVEL |
B + C + D + E |
165 ± 20 |
| ON LEVEL |
C + D + E |
135 ± 10 |
| PARTIAL LEVEL |
D |
Pri: 60 ± 5 |
| D |
Sec: 50 ± 5 |
| CLUTCH LEVEL |
F |
15 ± 5 |
