Repair Procedures: Removal
WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING COVER ")

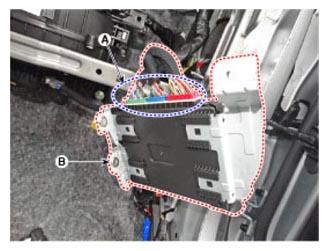

- Disconnect the connector (A) and then remove the IBU (B) after loosening a nut.
