Home >> Hyundai >> 2019 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Ac Inverter System >> AC Inverter Unit >> Components And Components Location >> Components

Components And Components Location: Components

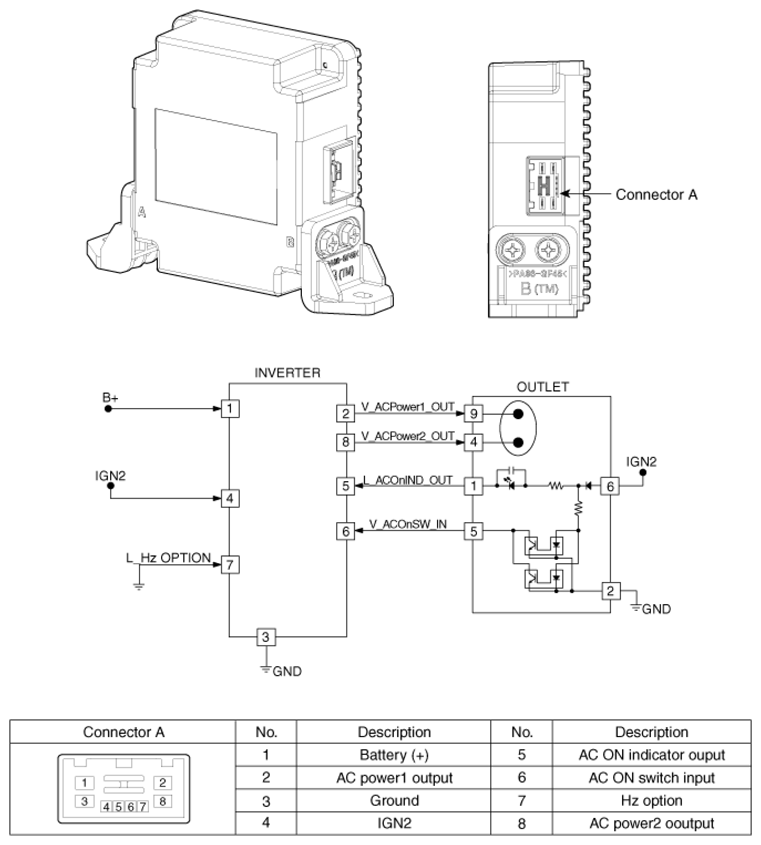

G13038271

Courtesy of HYUNDAI MOTOR AMERICA
