Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    WARNING:
    • Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
  2. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

  3. Loosen the bolts and then remove the rear air vent duct (A).
    G12996083Courtesy of HYUNDAI MOTOR AMERICA

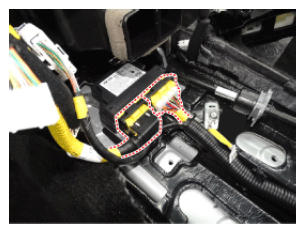

  4. Pull up the lock, of the SRSCM connector, the disconnect the connector.
    G12996084Courtesy of HYUNDAI MOTOR AMERICA

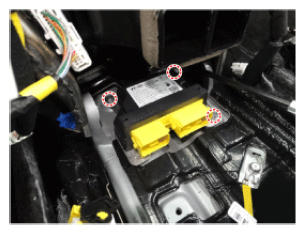

  5. Remove the SRSCM mounting bolts (3EA) from the SRSCM, then remove the SRSCM.
    CAUTION:
    • Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
    G12996085Courtesy of HYUNDAI MOTOR AMERICA
