Repair Procedures: Removal

  1. Turn ignition OFF switch and the disconnect the negative (-) battery cable.
  2. Remove the shift lever knob & boots (A).

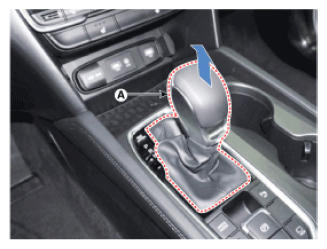

    G12992482Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

  4. Disconnect the connector (A).
  5. Remove the wiring (B) from the shift lever.

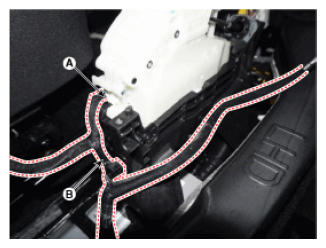

    G12992483Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the snap pin (A).
  7. Remove the cable eye end (B) from the shift lever.
  8. Remove the cable socket (C) from the shift lever.

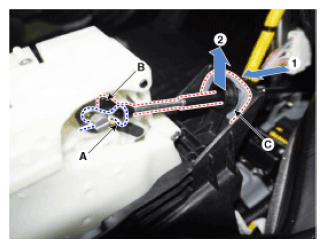

    G12992484Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    1. Lug must assemble upward.
    2. Install the snap pin after placing the shift lever in the N position.

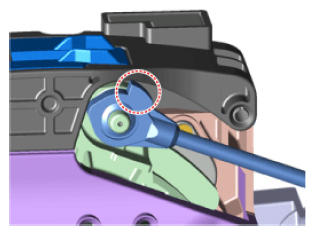

      G12992485Courtesy of HYUNDAI MOTOR AMERICA
    3. When assembling the snap pin, be careful about the correct direction.
      • The band portion must point to the front of the vehicle.
      • The band portion must point outwards.

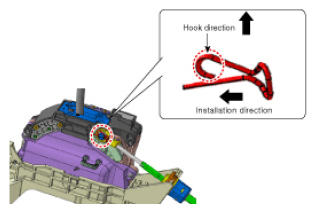

      G12992486Courtesy of HYUNDAI MOTOR AMERICA
  9. Loosen the bolts and then shift lever assembly (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

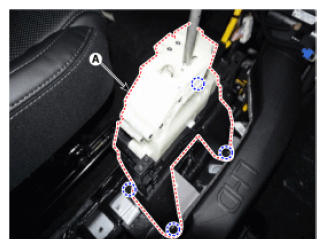

G12992487Courtesy of HYUNDAI MOTOR AMERICA
