Signal Waveform

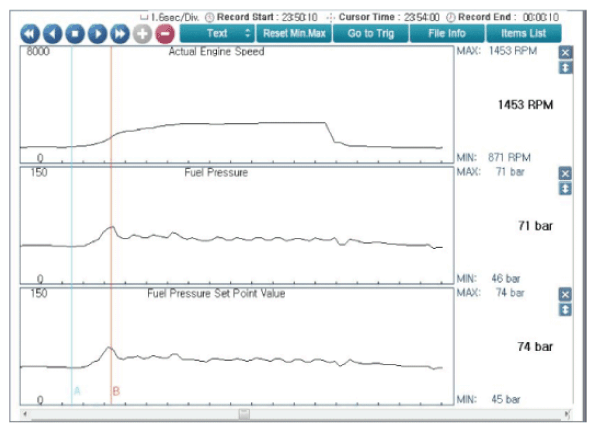

G12991961Courtesy of HYUNDAI MOTOR AMERICA

Service data review related with fuel pressure sensor at idle and acceleration.

(Inspect low pressure fuel line between fuel pump and high pressure pump first when the pressure of low pressure line is displayed low at idle.)

  1. Idle
  2. Acceleration
