Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

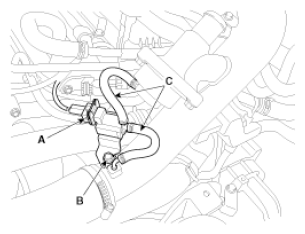

  2. Remove the RCV control solenoid valve after disconnect the connector (A), bolt (B) and RCV hose (C).
    G12992036Courtesy of HYUNDAI MOTOR AMERICA
