Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

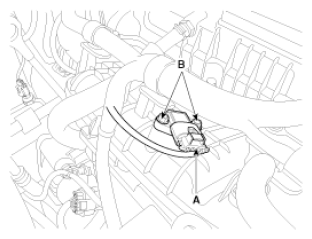

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the mounting bolt (B), and then remove the sensor from the intake manifold.
    G12991921Courtesy of HYUNDAI MOTOR AMERICA
