Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

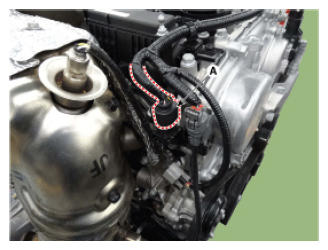

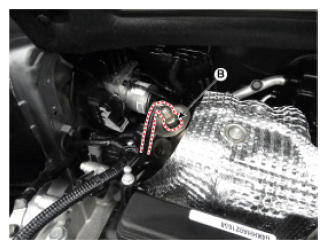

  2. Disconnect the connector (A), and then remove the sensor (B).
    G12991955Courtesy of HYUNDAI MOTOR AMERICA
    G12991956Courtesy of HYUNDAI MOTOR AMERICA
