Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the rear seat LH air duct (A) after loosening the mounting nuts.
    G12991975Courtesy of HYUNDAI MOTOR AMERICA

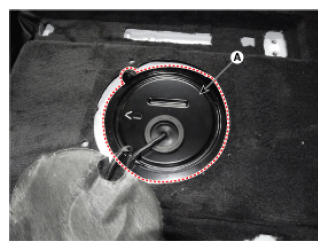

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G12991976Courtesy of HYUNDAI MOTOR AMERICA

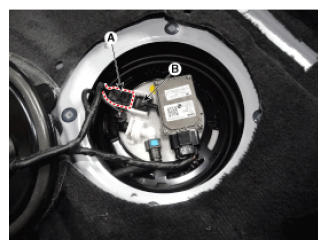

  5. Remove the fuel tank pressure sensor (A) after disconnect the connector (B).
    G12991977Courtesy of HYUNDAI MOTOR AMERICA
