EWAG Position Sensor

Position Output Voltage [V] Operating Angle [°] Range of Rod [mm], reference
Mechanical Close end stop Position (MCP) 4.8 0 0
Electrical Close end stop Position (ECP) 4.2 12 1.8
Electrical Open end stop Position (EOP) 1 79 16
Mechanical Open end stop Position (MOP) 0.5 90 18
G12992038Courtesy of HYUNDAI MOTOR AMERICA

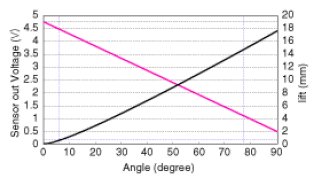

G12992039Courtesy of HYUNDAI MOTOR AMERICA
