Repair Procedures: Removal
WARNING:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Left the vehicle.

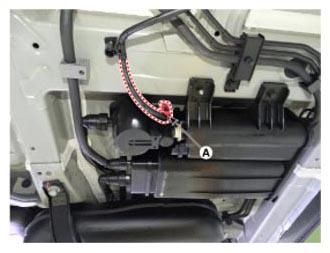

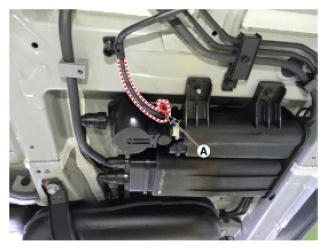

- Disconnect the canister close valve connector (A).

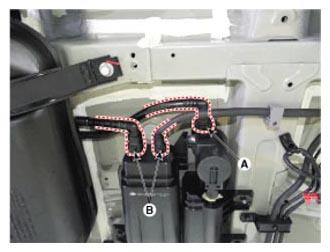

- Disconnect the vent hose quick-connector (A), the vapor hose quick-connector (B) from the canister.

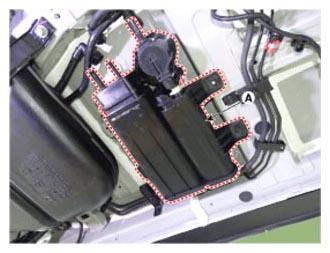

- Remove the canister assembly (A) after loosening the mounting bolt and nut.
- Remove the mounting bolt (A) and then separate the fuel tank air filter (B) from the canister after rotating it in the direction of the arrow in the figure.
- Release the lever (A) and then separate the canister close valve (B) from the fuel tank air filter by rotating the valve in the direction of the arrow in the image below.
