Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

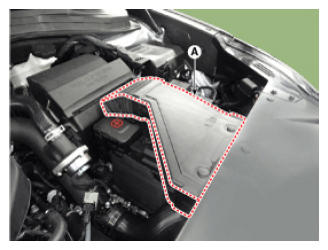

  2. Remove the air duct (A).
    G12991926Courtesy of HYUNDAI MOTOR AMERICA

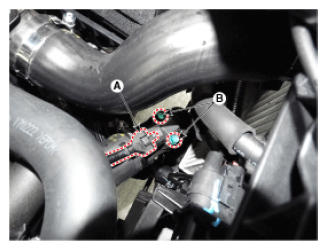

  3. Disconnect the boost pressure sensor connector (A).
  4. Remove the boost pressure sensor after loosening the mounting bolt (B).

    Boost pressure sensor mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G12991927Courtesy of HYUNDAI MOTOR AMERICA
