Repair Procedures: Removal

  1. Remove the shift lever knob & boots (A) pull both of it up.
    G12607260Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

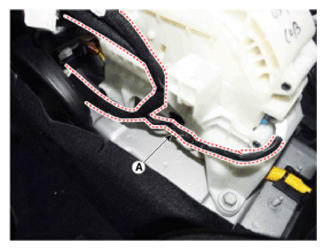

  3. Disconnect the connector and wiring (A).
    G12607261Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the shift cable.

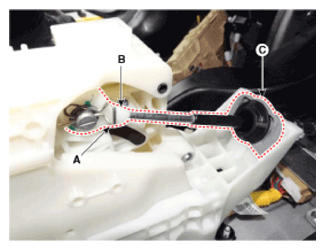

    1. Disconnect the eye-end (B) after removing the snap pin (A).
    2. Remove the cable socket (C).
      G12607262Courtesy of HYUNDAI MOTOR AMERICA

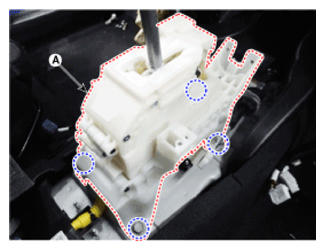

  5. Remove the shift assembly (A).

    Tightening torque

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G12607263Courtesy of HYUNDAI MOTOR AMERICA
