Repair Procedures: Removal
WARNING:
- Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Be sure to read and follow the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Shut Off the High Voltage Circuit.
(Refer to "HIGH VOLTAGE SHUT OFF PROCEDURES ")

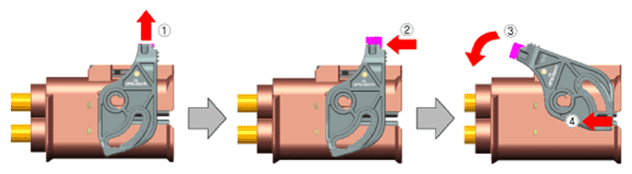

- Disconnect the motor power cable connector (A) and HSG power cable connector (B) after loosening the mounting bolts.
- Disconnect the power cable (A) and inverter power cable (B) from the HPCU.
Information
- Remove the inverter power cable in the following order.
- Remove the DC fuse cover (A) after loosening the mounting bolt.
DC Fuse Cover Installation Bolt:
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)
- Remove the DC fuse seal cover (A).
- Remove the DC fuse (A) from the HPCU after loosening the mounting bolt.
DC Fuse Installation Bolt:
9.3 - 10.4 N.m (0.95 - 1.06 kgf.m, 6.9 - 7.7 lb-ft)
