Components And Components Location: Components

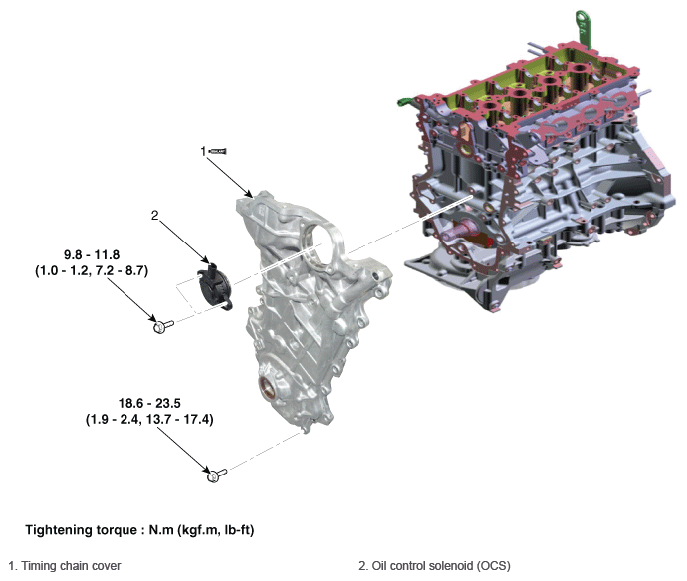

Fig 1: Timing Chain Cover Components With Torque Specification

G12725483

Courtesy of HYUNDAI MOTOR AMERICA
