Home >> Hyundai >> 2019 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System (PHEV) >> Oil Pan >> Components And Components Location >> Components

Components And Components Location: Components

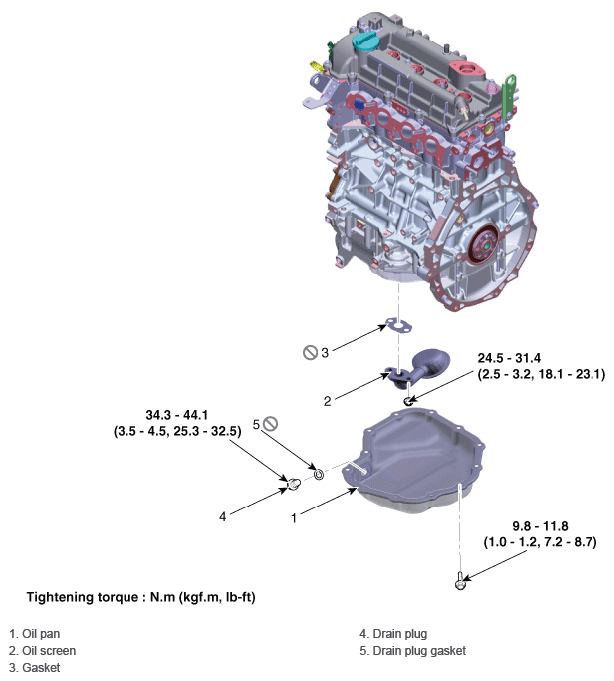

Fig 1: Oil Pan Components With Torque Specification

G12725705

Courtesy of HYUNDAI MOTOR AMERICA
