Repair Procedures: Replacement
- Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
- Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).
- Using the SST, secure the BJ boot bands.

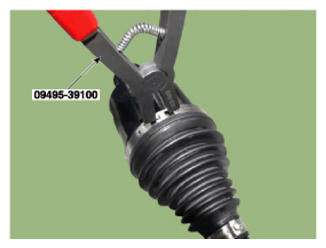

[Hook Type]

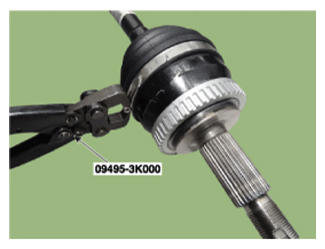

[Ear Type]
NOTE:- Do not disassemble the BJ assembly.
- Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
- The boot band should be replaced with a new one.
- Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Check the front alignment.
(Refer to Suspension System - "FRONT ALIGNMENT ")
