Home >> Hyundai >> 2019 >> Ioniq Plug-In Hybrid >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly (PHEV) >> BJ Boot >> Components And Components Location >> Components

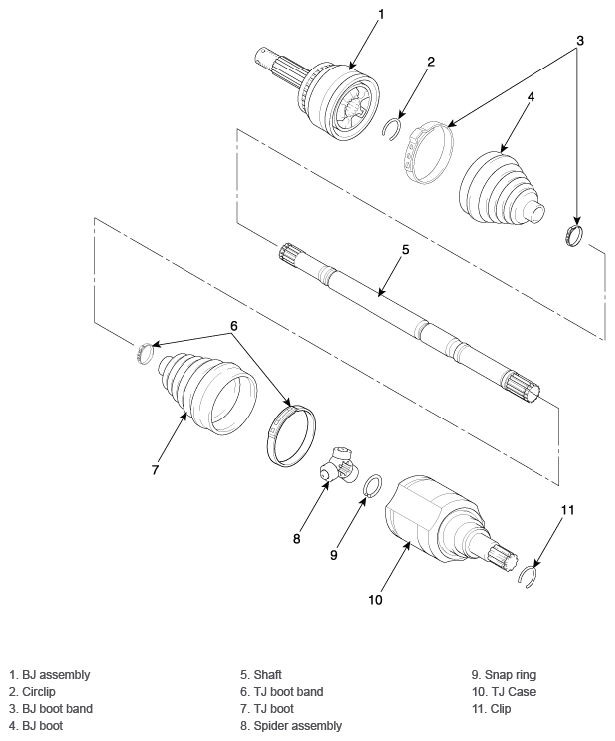

Components And Components Location: Components

G12727622

Courtesy of HYUNDAI MOTOR AMERICA
