Camber Adjustment

  1. Loosen the nut holding the rear lower arm cam bolt (A).
  2. Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise. Rear camber adjustment should be made by turning the right and left cam bolt by the same amount.

    Camber:  -1.2° ± 0.5°

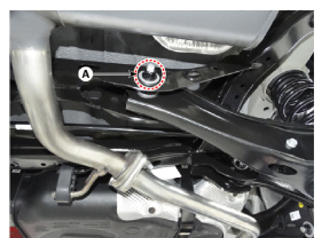

    G12727798Courtesy of HYUNDAI MOTOR AMERICA
