Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

  3. Remove the Smart Key Unit.

    (Refer to Body - "SMART KEY UNIT ")

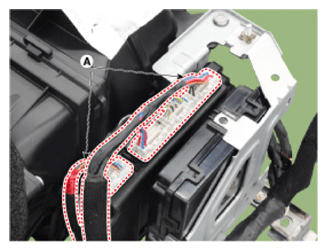

  4. Disconnect the body control module connectors (A).
    G12727877Courtesy of HYUNDAI MOTOR AMERICA

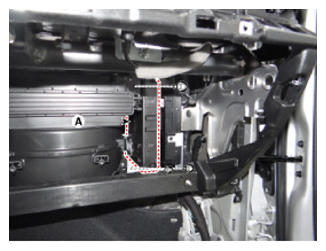

  5. Remove the body control module (A) after loosening the mounting nuts.
    G12727878Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.
