Repair Procedures: Removal

  1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.

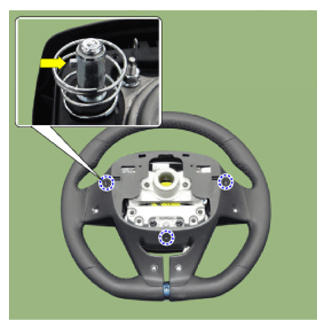

  3. Remove the driver airbag module (DAB).
    G12727855Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Insert the end of the flat tool along the guide hole. (ø5mm allen wrench recommend.)
    • After inserting the tool, lightly press it. Can be easily remove the air bag module.

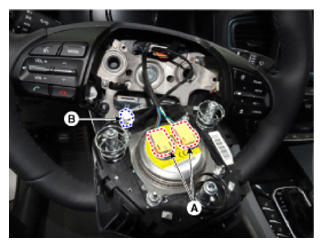

  4. Disconnect the airbag module connector (A) and horn connector (B).
    G12727856Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

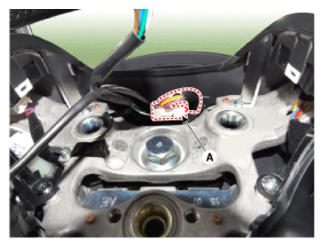

  5. Disconnect the connector (A).
    G12727857Courtesy of HYUNDAI MOTOR AMERICA

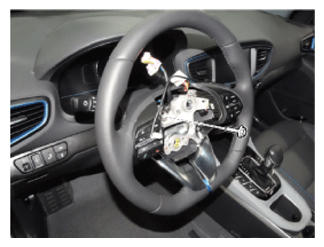

  6. Remove the steering wheel by loosening the lock bolt.
    G12727858Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the steering lock bolt.

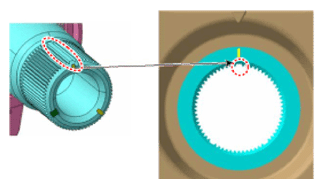

    • When assembling, match the gear teeth as the image below.
      G12727859Courtesy of HYUNDAI MOTOR AMERICA
  7. To install, reverse the removal procedure.
