Components And Components Location: Disassembly

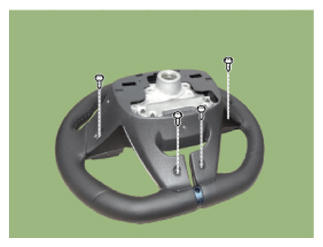

- Loosen the screw and then remove the lower cover.

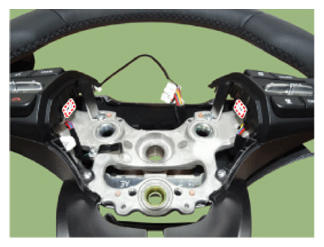

- Disconnect the remote control switch connector.

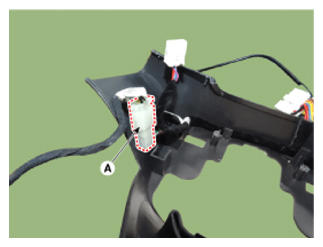

- Disconnect the heated steering wheel pad connector (A).

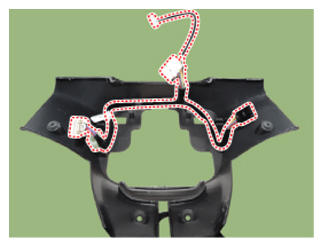

- Remove the wiring from the lower cover.

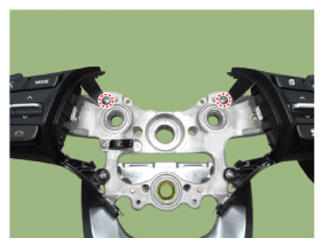

- Separate the remote control switch by loosening the screw

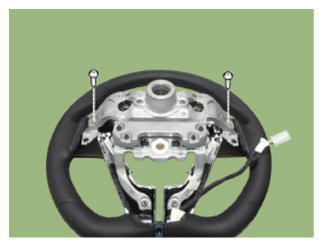

- Loosen the screw and then remove the steering wheel upper cover.
- To reassembly, reverse the disassembly procedure.
