Charging System
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | |
|---|---|---|

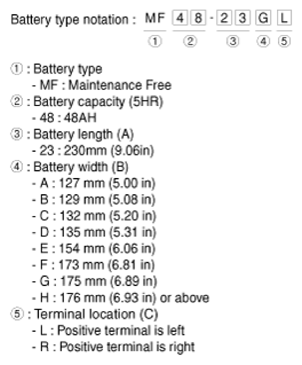

| Auxiliary 12V battery | Type | CMF45R-DIN |
| Cold cranking amperage [at -18°C (-0.4°F)] | 410A (SAE)/410 (EN) | |
| Reserve capacity | 80 min | |
| Specific gravity [at 25°C (77°F)] | 1.28 ± 0.01 | |
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
