Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Remove the battery and battery tray.

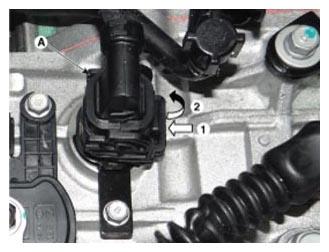

  3. Disconnect the solenoid valve connector (A).
    G12981195Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure resistance between sensor signal terminal and sensor ground terminal.
  5. Check that the measured resistance is within the specification.
