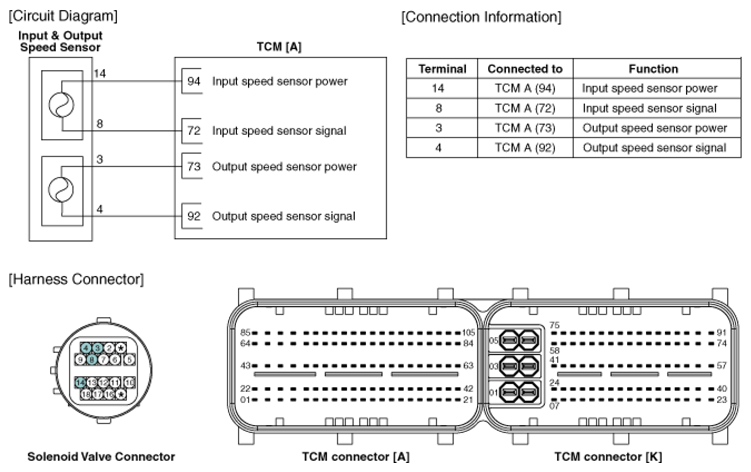

Home >> Hyundai >> 2019 >> Elantra Value Edition >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
