Repair Procedures: Inspection

  1. Using the GDS, check the input/output speed sensor waveforms.
    • Turn OFF the ignition switch.
    • Connect the GDS to the Data Link Connector (DLC) on the lower crash pad.
    • Ignition "ON" & Engine "ON".
    • Check the input/output speed sensor waveforms at high speed and low speed.

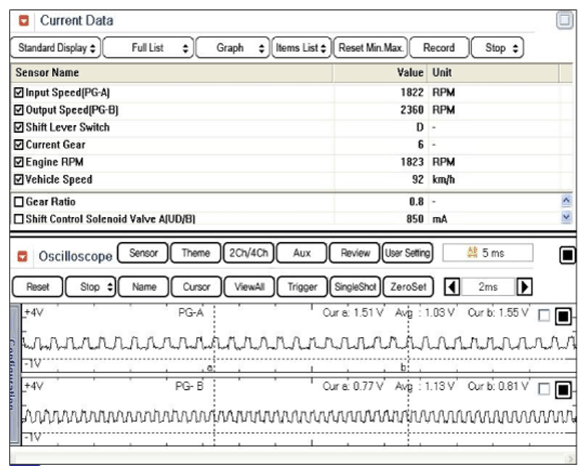

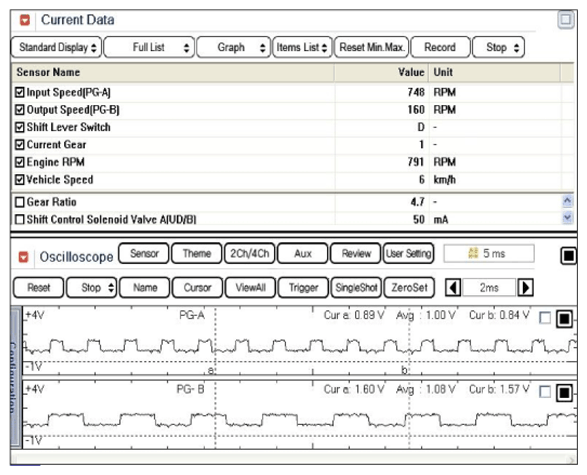

    G12981213Courtesy of HYUNDAI MOTOR AMERICA
    G12981214Courtesy of HYUNDAI MOTOR AMERICA
