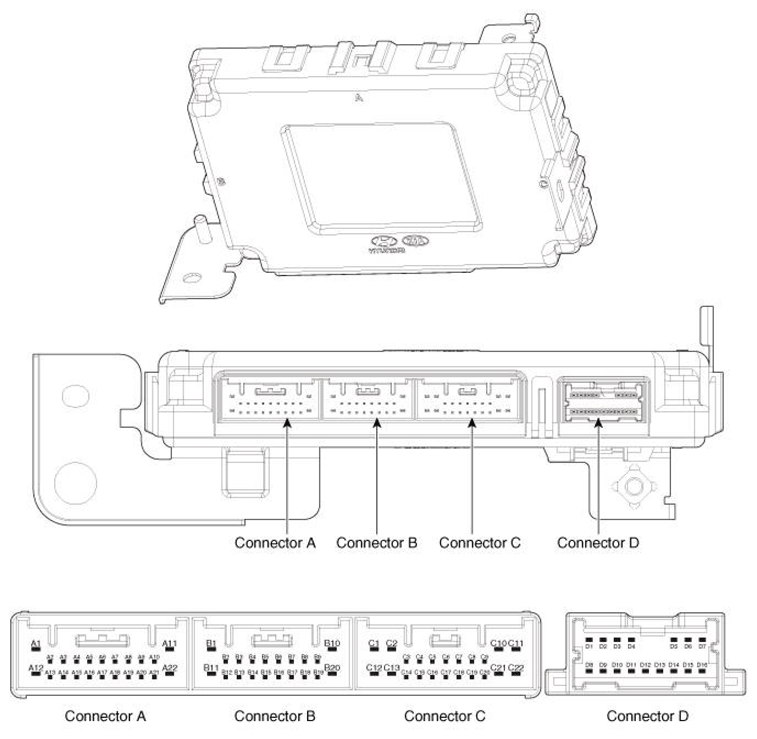

| 1 |
Batt (+) |
Blade position (Low) |
Rain sensor (LIN) |
Airbag unit (LIN) |
| 2 |
IGN 1 |
Front wiper switch (High) |
- |
RPAS (LIN) |
| 3 |
IGN 2 |
Light switch |
- |
Puddle lamp |
| 4 |
Brake switch |
Head lamp switch (High) |
- |
ATM solenoid |
| 5 |
Front wiper switch (Low) |
Auto light power |
- |
Power window (Enable) |
| 6 |
- |
Body CAN (High) |
- |
Wiper relay (High) |
| 7 |
Heated steering switch |
Body CAN (Low) |
RPAS Buzzer |
Key solenoid |
| 8 |
PAS Switch |
- |
IGN 1 |
- |
| 9 |
Rear defogger switch |
Chassis CAN (Low) |
PAS Front sensor power |
PAS Switch indicator |
| 10 |
Window lock switch |
Chassis CAN (High) |
RPAS Front sensor power |
Heated steering indicator |
| 11 |
Rain sensor input |
- |
Heated steering output |
- |
| 12 |
ACC |
Auto light sensor |
GND |
Key hole illumination |
| 13 |
Front washer switch |
Front wiper int vol switch |
Rear center seat belt indicator |
Passenger seat belt indicator |
| 14 |
- |
Fog lamp switch |
Rear left seat belt indicator |
Wiper relay (Low) |
| 15 |
Key in switch |
NTC Sensor signal input |
Rear right seat belt indicator |
Tail lamp |
| 16 |
- |
Airbag signal |
- |
Room lamp |
| 17 |
- |
- |
Security indicator |
|
| 18 |
Sunroof open switch |
- |
- |
| 19 |
PAS Input |
Multifunction switch ground |
- |
| 20 |
Ket inter lock switch |
Auto light ground |
- |
| 21 |
NTC Ground |
|
- |
| 22 |
Ground |
IGN 2 Heated steering power |
