Repair Procedures: Removal

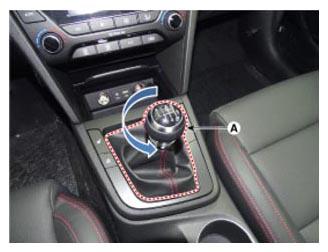

Remove the shift lever knob & boots (A) after turning in the counter clock-wise direction.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

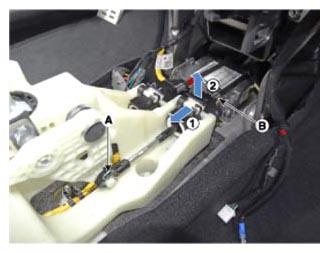

Disconnect the select cable (B), after removing the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift cable.

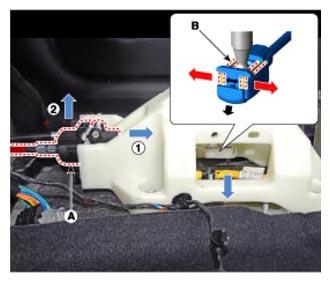

1. Remove the cable socket (A), after release the lock.
2. Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
Courtesy of HYUNDAI MOTOR AMERICA

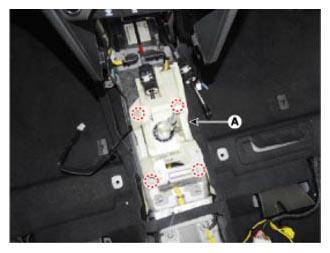

Remove the shift lever assembly (A) after removing the bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
