Components And Components Location: Components

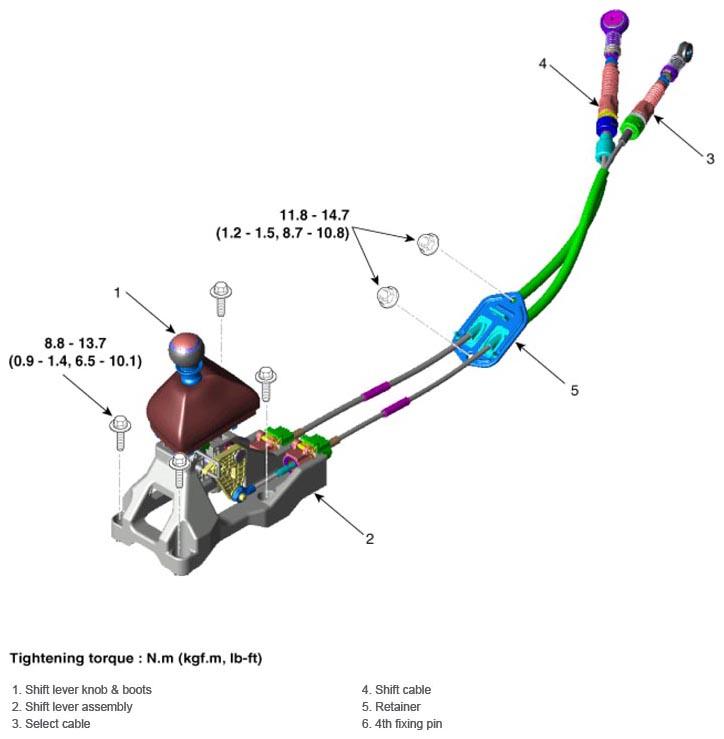

Fig 1: Shift Lever Components Location With Torque Specification

G12972052

Courtesy of HYUNDAI MOTOR AMERICA
