Home >> Hyundai >> 2019 >> Elantra Sport, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.6L >> Control Cable >> Components And Components Location >> Components

Components And Components Location: Components

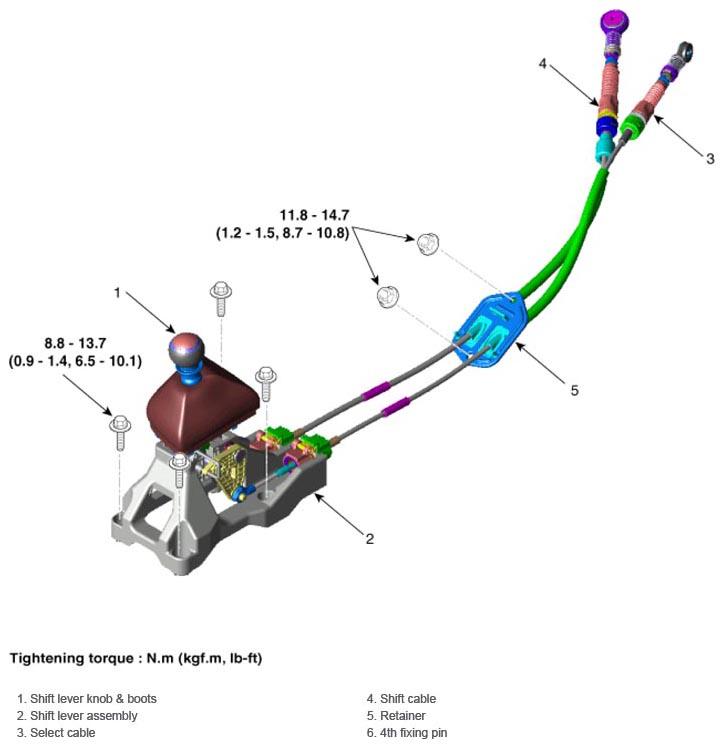

Fig 1: Control Cable Components Location With Torque Specification

G12972058

Courtesy of HYUNDAI MOTOR AMERICA
