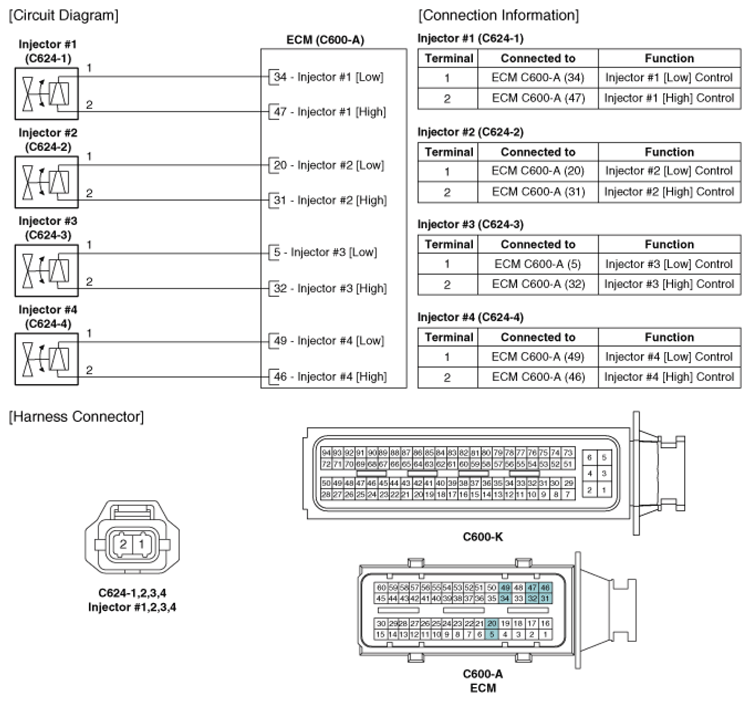

Home >> Hyundai >> 2019 >> Elantra Sport, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Injector >> Schematic Diagrams >> Circuit Diagram
