Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

  3. Remove the installation bolt (A), and then remove the air filter (B).

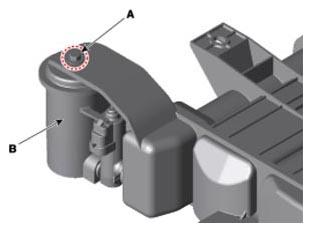

    G12971916Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the image.
    G12971917Courtesy of HYUNDAI MOTOR AMERICA

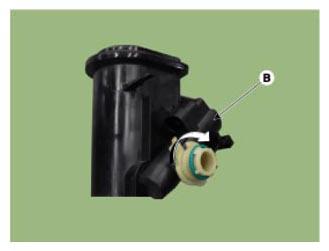

    G12971918Courtesy of HYUNDAI MOTOR AMERICA
  5. Install a new fuel tank air filter in accordance with the reverse order.
