Heated steering wheel switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper complete assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

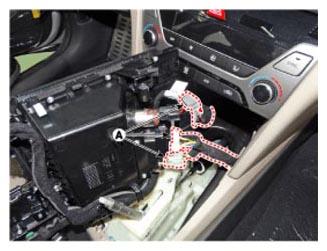

  3. Disconnect the connector (A).
    G12973050Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
