Repair Procedures: Removal

CAUTION: Handling wireless charging system parts by wet hands may cause electric shock.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the Floor Console Upper Cover Assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

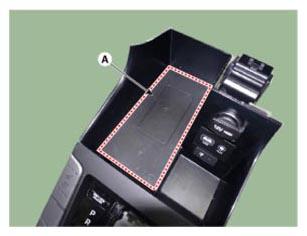

  3. Disconnect the rubber pad (A).
    G12980135Courtesy of HYUNDAI MOTOR AMERICA

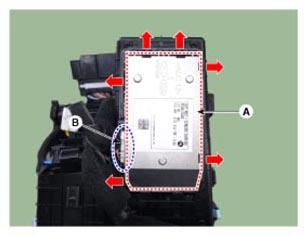

  4. Remove the wireless power charger unit (A) after mounting screws and disconnecting the connector (B).
    G12980136Courtesy of HYUNDAI MOTOR AMERICA
