Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

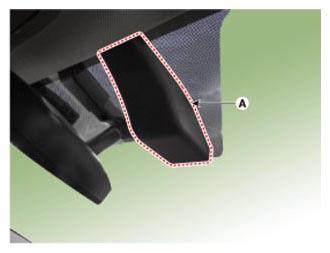

  2. Remove the front view camera unit cover (A).
    G12980166Courtesy of HYUNDAI MOTOR AMERICA

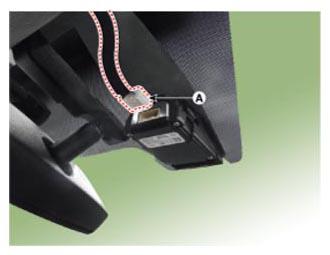

  3. Disconnect the front view camera unit connector (A).
    G12980167Courtesy of HYUNDAI MOTOR AMERICA

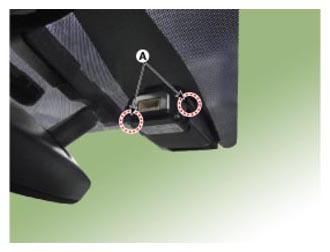

  4. Remove the front view camera unit after disengaging the mounting bracket (A).
    G12980168Courtesy of HYUNDAI MOTOR AMERICA
