[Driver Power Window Switch]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power mirror switch connector from the door trim.

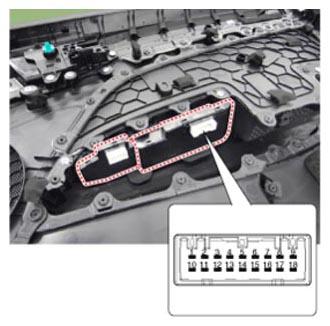

    G12975294Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown below.

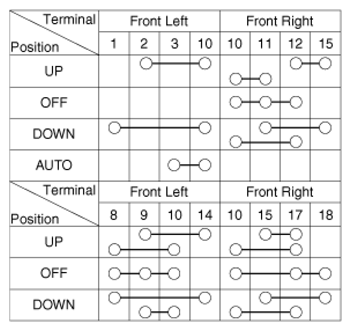

    [Power Window Switch Inspection]

    G12975295Courtesy of HYUNDAI MOTOR AMERICA

    [Power Door Lock Switch Inspection]

    G12975296Courtesy of HYUNDAI MOTOR AMERICA

    [Power Window Lock Switch Inspection]

    G12975297Courtesy of HYUNDAI MOTOR AMERICA
