Rear Power Window Motor

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Refer to Body - "REAR DOOR TRIM ")

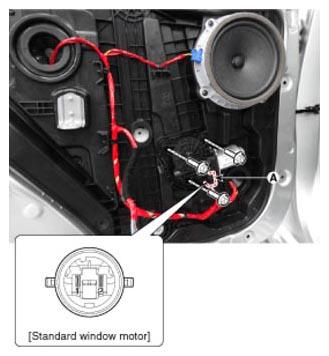

3. Disconnect the motor connector from the motor.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.

[Safety Window Motor]

Courtesy of HYUNDAI MOTOR AMERICA
