Components & Component Location: Components

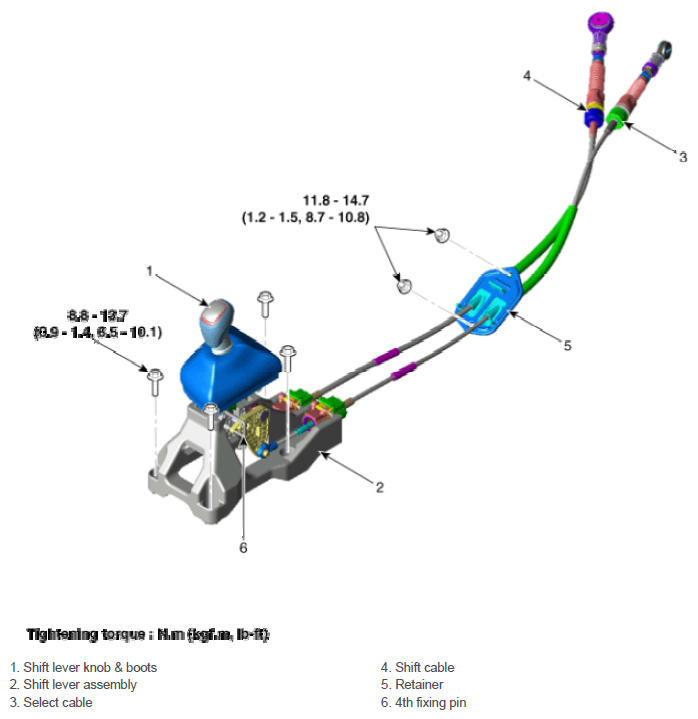

Fig 1: Shift Lever Components Location With Torque Specification

G13015822

Courtesy of HYUNDAI MOTOR AMERICA
