Home >> Hyundai >> 2019 >> Elantra GT N Line, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.6L >> Control Cable >> Components & Component Location >> Components

Components & Component Location: Components

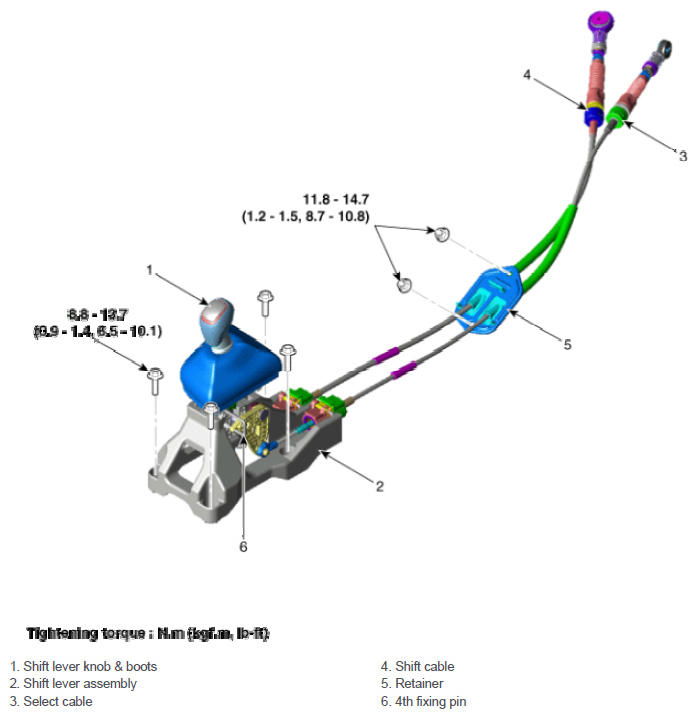

Fig 1: Control Cable Components Location With Torque Specification

G13015828

Courtesy of HYUNDAI MOTOR AMERICA
