Repair Procedures: Removal

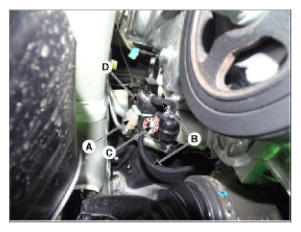

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the waste gate solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the waste gate solenoid valve.
  4. Remove the waste gate valve (D) by loosening the bolt (C).
G13015651Courtesy of HYUNDAI MOTOR AMERICA
