Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

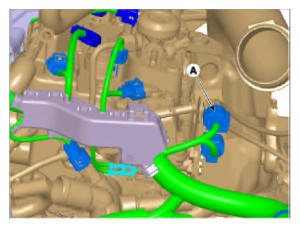

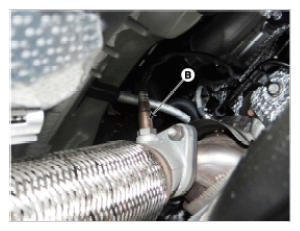

  2. Disconnect the connector (A), and then remove the sensor (B).
G13015606Courtesy of HYUNDAI MOTOR AMERICA
G13015607Courtesy of HYUNDAI MOTOR AMERICA
