Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
NOTE:
  • Note that the SST (Part No.: 09392-1Y100) is useful when removing the heated oxygen sensor.
G13015603Courtesy of HYUNDAI MOTOR AMERICA

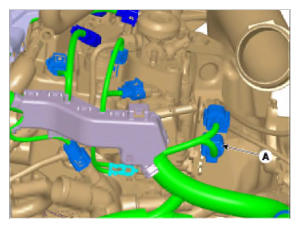

G13015604Courtesy of HYUNDAI MOTOR AMERICA

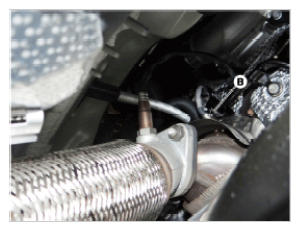

G13015605Courtesy of HYUNDAI MOTOR AMERICA
