Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover assembly.

    (Refer to CRASH PAD - "Glove Box Upper Cover Assembly")

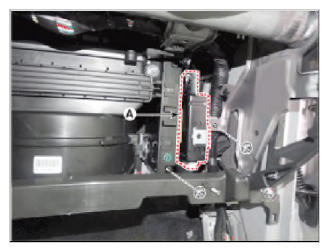

  3. Remove the smart key unit (A) after loosening the mounting nuts.
    G13035595Courtesy of HYUNDAI MOTOR AMERICA

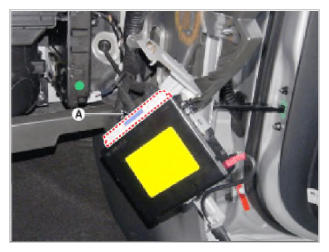

  4. Disconnect the smart key unit connectors (A).
    G13035596Courtesy of HYUNDAI MOTOR AMERICA
