Components Location

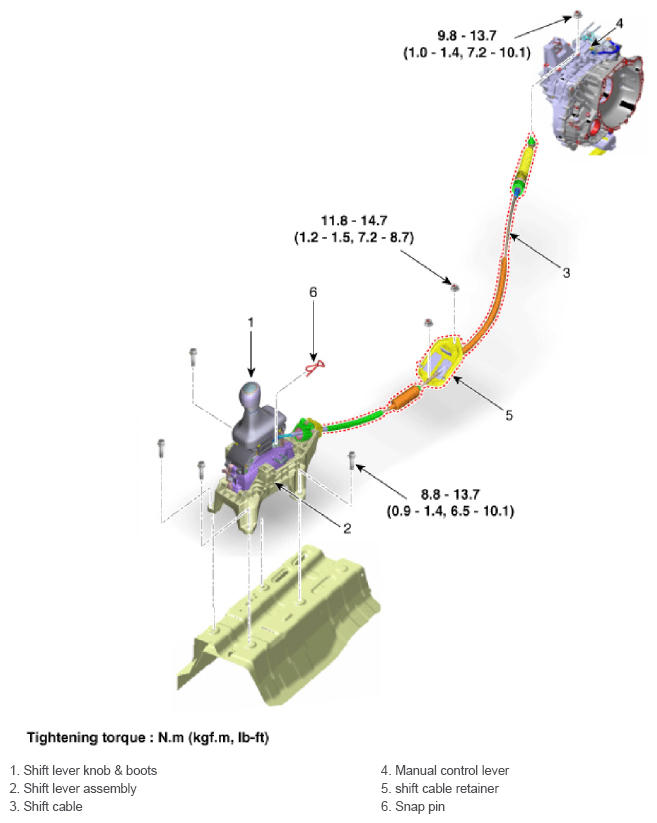

Fig 1: Shift Cable Components Location With Torque Specification
G13037400Courtesy of HYUNDAI MOTOR AMERICA
