Repair Procedures: Inspection: Notes

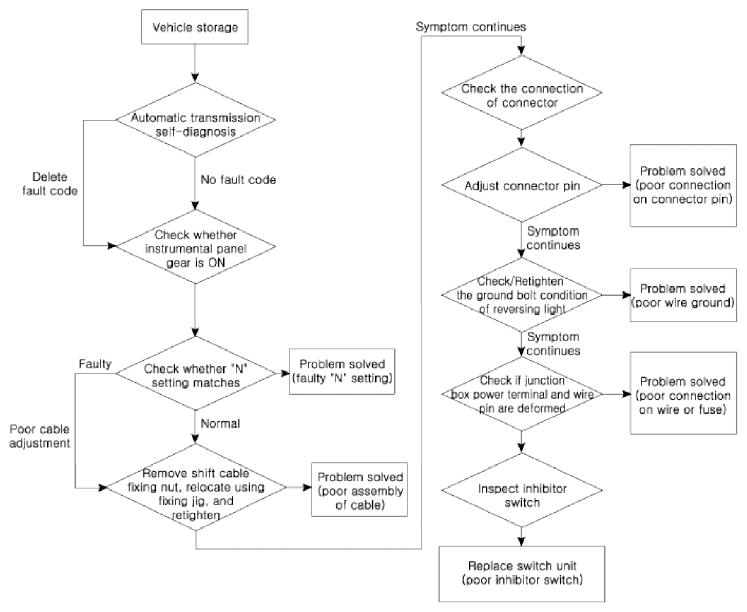

Inspection flow of the inhibitor switch
Courtesy of HYUNDAI MOTOR AMERICA
