Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

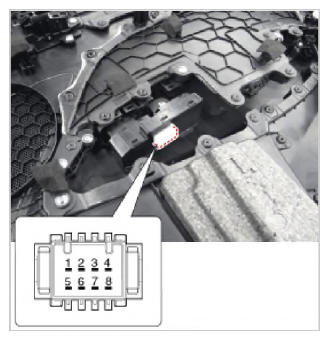

  3. Disconnect the power mirror switch connector from the door trim.
    G13035853Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as displayed below.
    G13035854Courtesy of HYUNDAI MOTOR AMERICA
