Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the assist door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

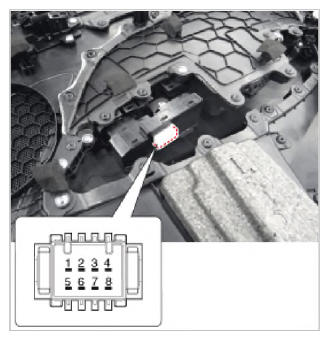

  3. Disconnect the power mirror switch connector from the door trim.
    G13035851Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as displayed below.
    G13035852Courtesy of HYUNDAI MOTOR AMERICA
